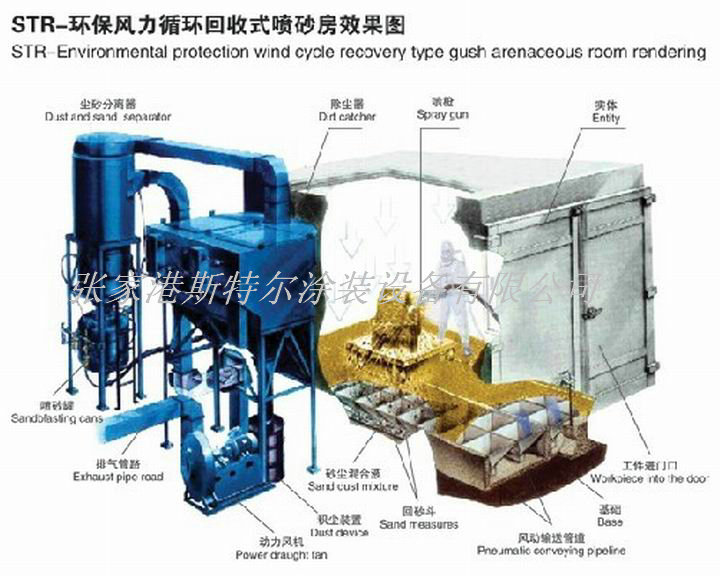

STR-環保風力循環回收式噴砂房效果圖

STR-Environmental protection wind cycle recovery sandblast room designsketch

◆噴砂（丸）房的組合控制系統

Composition of the sandblasting (shot) room system

1、工作任務室  Studio

2、噴砂整體  Sandblasting  system

3、爐料收廢操作系統  Abrasive recycle system

4、除塵器系統  Dust removal system

5、產品輸送管軟件  Workpiece conveying system

6、操控裝置  Control system

7、戶外照明系統軟件  Lighting system

 ◆可用依(yi)據 Applicable scope

巨(ju)型鑄件(jian)鍛件(jian)、焊接方法鋼架構、電抗器郵箱(xiang)、項目(mu) 廠家(jia)、電力(li)機車(che)來往(wang)車(che)輛、電廠鍋(guo)爐制作業、精(jing)細化工廠家(jia)、港口碼(ma)頭修造等噴砂除銹防銹。

Large castings and forgings welding steel structure, transformer oil tank, engineering machinery, locomotives, boiler manufacturing, chemical machinery, ship building blast cleaned, etc.

 ◆成品特性 Product features

噴砂房是我公司在蜂窩地板技術的基礎上，自行開發、設計的環保型蜂窩式噴砂（丸）房，可按客戶的產品特性、噴砂要求等設計制作。蜂窩地板噴砂房是利用風機的風力為動力，將磨料通過回料管道吸送到旋風分離器中進行分離，最后進入噴砂系統循環利用。

Sandblasting room  is our company in introducing foreign advanced cell technology based on the floor, , the development, the design of the environmental protection cellular gush arenaceous (shot) room by ourselves, according to customers' product characteristics, sandblasting design requirements, etc. Cellular floor gush arenaceous room is the wind power by fan for abrasive materials, will back through the pipe to cyclone separator suction of separation and finally into gush arenaceous system recycling.

存在一下顯著優點：

1、省去了常規噴砂房砂料輸送煤循環系統的螺旋輸送機，斗式提升機以及地下工程，不需建造地坑，節約了地基施工費用，大大節約了工程成本；

2、金(jin)剛(gang)石工具利用(yong)率高，盡可能使(shi)清換金(jin)剛(gang)石工具；

3、核(he)心機(ji)電(dian)元器件均運(yun)用(yong)(yong)原裝進口物料，更具(ju)穩(wen)固性穩(wen)固，安全防護靠普，用(yong)(yong)到期限長(chang)，運(yun)營(ying)維護方便；

4、噴砂房室體內有高清晰的能見度，室體自然補風，節約能源消耗；

5、超聲波(bo)焊接機選擇(ze)(ze)單級收(shou)塵(chen)處(chu)(chu)(chu)理(li)(li)設(she)(she)備，首先(xian)級選擇(ze)(ze)漩風剝離 器，第五級用空壓三(san)濾式收(shou)塵(chen)處(chu)(chu)(chu)理(li)(li)設(she)(she)備操作系統，其總收(shou)塵(chen)處(chu)(chu)(chu)理(li)(li)設(she)(she)備生產(chan)率相當(dang)于99.99%往(wang)上；

6、在噴砂房正面房頂上部，配有“聲光報警系統”，在噴砂房內，配有急停呼叫按鈕；

7、各平臺(tai)自動調控主要(yao)包(bao)括互鎖(suo)調控，當之中一(yi)平臺(tai)現(xian)身故障問(wen)題時，有關(guan)于平臺(tai)均關(guan)閉工作上(shang)，噴(pen)槍關(guan)閉噴(pen)出(chu)；

8、房(fang)體用于房(fang)子裝飾方(fang)案(an)設計方(fang)案(an)，精美(mei)簡明扼(e)要、精美(mei)、規范標準，隔(ge)音降(jiang)噪(zao)特效(xiao)好，且進行(xing)安裝高效(xiao)。

Advantages

1. Omitted conventional Sandblasting room sand conveying coal circulation system, screw conveyor a pattern lift machine and underground project, no need to build the pit and save foundation pit construction cost, greatly reduce the project cost;

2. high  abrasive recycle efficiency, easy to change abrasive;

3. The main electrical components are imported products, have the stable performance, safety and reliability, long life, easy maintenance;

4. Sandblasting room inside has high-resolution visibility, Chambers fill the wind, save energy natural consumption;

5. This machine use double levels of dust removing, the first level is the cyclone separator, the second type is filter dust removal system. Its total removal efficiency may reach above 99.99%;

6. In sandblasting room roof, equipped with a "positive upper sound-light alarm system", in the room, sandblasting with abrupt stop call button;

7. The electric control system uses interlock control, while one system malfunction, related system are to stop working, stop spraying gun;

8. Building decoration design room body appearance, simple , beautiful, standard, good noise reduction result  and convenient installation.
